senseamidmadness 9 Posted August 28 Share Posted August 28 Hey folks, I'm having a weird problem. I was able to successfully flash LineageOS 21 onto my Pro1X, but about a minute after booting (may be when the screen first locks, not sure) the touchscreen quits working and doesn't work again unless Recovery and the Lineage package are totally reflashed. I reflashed them using fastboot. Tried all four of the currently-available nightly builds and all four of them did the same thing. Even tried installing the oldest one and updating within Lineage to the latest. Same problem. I can do some limited navigation with the keyboard but obviously it's not usable as a phone in this state. I did check and the touchscreen worked in stock Android before the flash. Any ideas? Also is it normal for both the "model" string and serial number to be mismatched in the bootloader? My model is listed as "bengal" and my serial number is hexadecimal while the one on the back of the phone is alphanumeric. This is a significant problem as that mismatch means the "return to stock" script won't work -- it expects the model string to return as "QX1050". 1 Quote Link to post Share on other sites
EskeRahn 5,464 Posted August 29 Share Posted August 29 20 hours ago, senseamidmadness said: Also is it normal for both the "model" string and serial number to be mismatched in the bootloader? My model is listed as "bengal" and my serial number is hexadecimal while the one on the back of the phone is alphanumeric. This is a significant problem as that mismatch means the "return to stock" script won't work -- it expects the model string to return as "QX1050". AFAIK that is normal Quote Link to post Share on other sites
senseamidmadness 9 Posted August 29 Author Share Posted August 29 Appreciate that info. Anybody know how to un-break the "return to stock" script that's on this forum by replacing the expected QX1050 with "bengal"? Quote Link to post Share on other sites
senseamidmadness 9 Posted August 29 Author Share Posted August 29 Okay, I was able to follow a tutorial on this forum and get stock Android reflashed on this phone - the 2020/07/07 build version 2.1.2. Touchscreen still isn't working. I'm wondering if it might be a hardware issue with the digitizer or something at this point. Should I order a replacement screen maybe? Quote Link to post Share on other sites
EskeRahn 5,464 Posted August 29 Share Posted August 29 2 hours ago, senseamidmadness said: Should I order a replacement screen maybe? A long shot is that it is a cable that is not firmly in the plug, so if you are to open the upper part with the intend of replacing anyway then try to check that. 1 Quote Link to post Share on other sites
senseamidmadness 9 Posted August 29 Author Share Posted August 29 I ordered a screen as a well-reviewed supplier on AliExpress had them for only $50. Will update when I receive it in the mail in a few weeks and open up the phone. 1 2 Quote Link to post Share on other sites
senseamidmadness 9 Posted September 2 Author Share Posted September 2 (edited) Replacement screen hasn't arrived yet, but after a few days of staying off on the shelf the phone has...somehow got its touchscreen functionality back in stock Android 11. Don't know for how long. I'm going to open it up anyways but this is super weird. Screen firmware updating itself maybe? Edit: it did the same thing it did in LineageOS. Worked for a little bit longer this time, about 5 minutes, and now the screen won't respond to touch again. Gotta be a hardware issue right? Edited September 2 by senseamidmadness 2 Quote Link to post Share on other sites
EskeRahn 5,464 Posted September 2 Share Posted September 2 2 hours ago, senseamidmadness said: Gotta be a hardware issue right? That would be my guess too, but strange that that it starts working again though shortly. If you are lucky, it is a cable not locked in the connector and maybe the way holding it can make the cable just get or just loose contact BUT this is a pure guess, 1 Quote Link to post Share on other sites
Burkhard 3 Posted September 3 Share Posted September 3 Hello, I always read here with great interest. I also have a pro1x and am slowly getting used to it. I use it as a normal phone with Android. Since there seem to be more problems, I would like to order some spare parts just to be on the safe side. But when I search for pro1x on Aliexpress, I don't get any hits. Can you give me some tips, links. Here or as a PM, if that's possible? Thanks, sorry, I still have to learn here in the forum Burkhard Quote Link to post Share on other sites
EskeRahn 5,464 Posted September 3 Share Posted September 3 The screen is identical to the one used by Elephone U Pro. BUT there could be some initialisation issues with setting the size of the touch border, that we are yet to find a solution for. Currently the only way I know of to do it, is to attach it to a pro1 (not pro1X) and re-flash that with stock android, as this process initialise the screen setup also.... (I have not tried this myself yet though) Unfortunately none have (yet?) been able to extract what this precisely does, so it could be replicated directly on a Pro1X So would be great if some had the skills and time to reverse engineer here.... Quote Link to post Share on other sites
FlyingAntero 871 Posted September 3 Share Posted September 3 7 hours ago, EskeRahn said: Unfortunately none have (yet?) been able to extract what this precisely does, so it could be replicated directly on a Pro1X So would be great if some had the skills and time to reverse engineer here.... Someone brave should test to flash stock Android 9 firmware of Pro1 to Pro1-X with new screen. I mean the same process that Lineage OS users have done when changing the screen. "You have your current rom installed and try to overwrite it without wiping data. The installation starts and fails after a few minutes, however the display area is reconfigured" It works on Pro1 and you do not lose data. But probably the flashing of Pro1 firmware to Pro1-X does not even start. And if it does, there might be high risk to brick device. 2 Quote Link to post Share on other sites
senseamidmadness 9 Posted September 5 Author Share Posted September 5 On 9/2/2024 at 2:47 PM, EskeRahn said: That would be my guess too, but strange that that it starts working again though shortly. If you are lucky, it is a cable not locked in the connector and maybe the way holding it can make the cable just get or just loose contact BUT this is a pure guess, I found a possible correlation between the phone's temperature and whether the touchscreen works or not, as it has sat in sleep mode for a few days now and the touchscreen seems to be working every time I grab it. Phone has consistently been at room temperature every time I've tried. But when I plug the phone in and charge it, after a minute or two it warms up a bit to the touch...and the screen won't receive any touch input. It's wacky. A loose cable does seem possible, especially on the motherboard side. I'm still waiting on that replacement screen. On 9/3/2024 at 2:07 AM, Burkhard said: But when I search for pro1x on Aliexpress, I don't get any hits. I searched "QX1050" and that found the screen I needed. 1 Quote Link to post Share on other sites
Burkhard 3 Posted September 5 Share Posted September 5 hello and thanks for the tip. the dealer has the same display for qx1050 and qx1000, so pro1x and pro1 on offer. but he doesn't ship to Germany, well, everything works fine. I just wanted to be on the safe side, burkhard 1 Quote Link to post Share on other sites
EskeRahn 5,464 Posted September 5 Share Posted September 5 As mentioned you could also look for "Elephone U Pro" i think they are more common, and they use the same BOE display. Quote Link to post Share on other sites
FlyingAntero 871 Posted September 5 Share Posted September 5 I think that this is best option since it includes correct frame. https://www.aliexpress.com/item/1005005062900944.html Quote Link to post Share on other sites
Hook 3,036 Posted September 5 Share Posted September 5 1 hour ago, FlyingAntero said: I think that this is best option since it includes correct frame. https://www.aliexpress.com/item/1005005062900944.html I was under the impression that the frame for the Pro1 is not 100% identical to the frame for the Pro1x (different camera? Other subtle differences?). Anyone know. I can't remember. 1 Quote Link to post Share on other sites
EskeRahn 5,464 Posted September 5 Share Posted September 5 Ah yes, for the elephone ones you should get it without the frame, as it is different. If you can get it with a frame fitting the pro1/prpo1x, that is obviously easier to swap. Quote Link to post Share on other sites

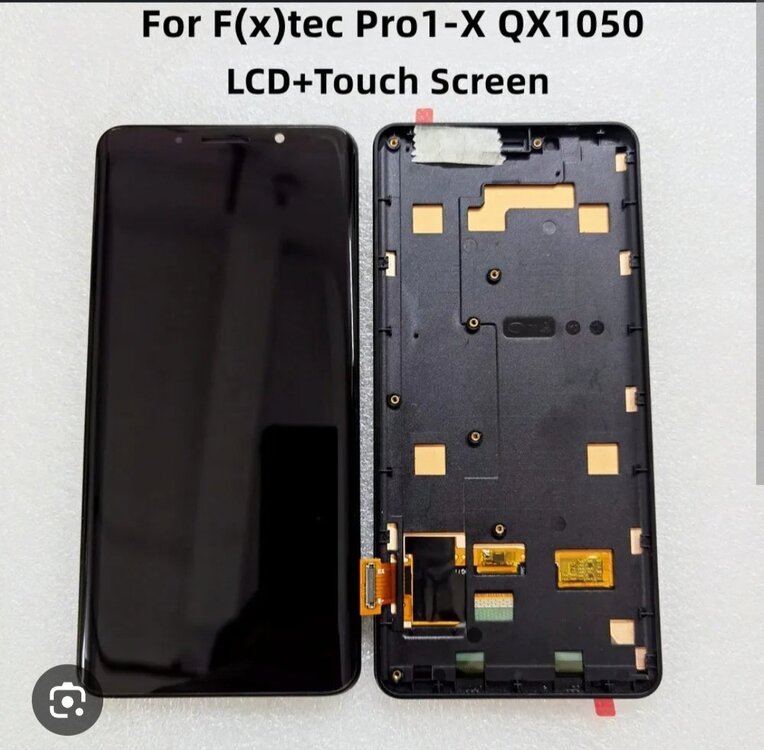

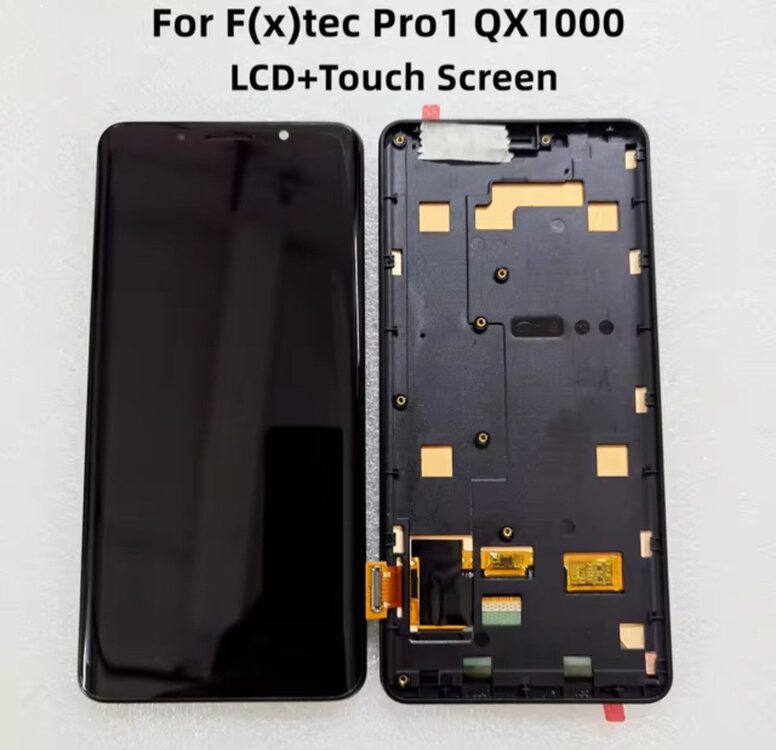

FlyingAntero 871 Posted September 5 Share Posted September 5 1 hour ago, Hook said: I was under the impression that the frame for the Pro1 is not 100% identical to the frame for the Pro1x (different camera? Other subtle differences?). Anyone know. I can't remember. I was thinking that they are the same. Is the selfie camera different? I thought that only rear camera is different. But anyway, maybe @gusscan confirm? I think guss ordered pro1 screen panel with frame for Pro1-X. Also, some sellers list same screen for both Pro1 and Pro1-X (see attachments). 1 Quote Link to post Share on other sites
Hook 3,036 Posted September 5 Share Posted September 5 1 hour ago, FlyingAntero said: I was thinking that they are the same. Is the selfie camera different? I thought that only rear camera is different. But anyway, maybe @gusscan confirm? I think guss ordered pro1 screen panel with frame for Pro1-X. Also, some sellers list same screen for both Pro1 and Pro1-X (see attachments). That's good news then. Quote Link to post Share on other sites
claude0001 1,345 Posted September 5 Share Posted September 5 4 hours ago, FlyingAntero said: I was thinking that they are the same. Is the selfie camera different? I once tried to swap-in the screen assembly of a Pro1-X into a Pro1. They fit mechanically and connector-wise. The result was that the Pro1 was able to boot into a (working) Lineage recovery, but not into the full OS. I thus assumed the selfie camera was different. Of course, the top half of the Pro1(X) includes more than the (touch)screen and camera. There is the indicator LED, the ambient-light photodiode, a speaker and (I guess) a mic for handheld audio. But somehow I had assumed those were analogue devices that could not cause a crash upon boot. 1 4 Quote Link to post Share on other sites
EskeRahn 5,464 Posted September 6 Share Posted September 6 I would expect that the screen plus frame they are selling, are far from the full top half, and thus not includes the front camera. 1 Quote Link to post Share on other sites
FlyingAntero 871 Posted September 6 Share Posted September 6 50 minutes ago, EskeRahn said: I would expect that the screen plus frame they are selling, are far from the full top half, and thus not includes the front camera. Yeah, the screen with frame does not include front camera module and the board for the connector. So those parts would need to swap anyway from the old screen. But the frame and the panel itself is the same so it makes the change much easier. 3 Quote Link to post Share on other sites
senseamidmadness 9 Posted October 15 Author Share Posted October 15 Update for y'all. I managed to get a replacement screen assembly straight from f(x)tec after back and forth messaging with their support. It even has a blue bezel. The one from AliExpress showed up and there's a notable difference: a small circuit board that connects from the body ribbon cable (2 plugs) to the display ribbon cable (1 plug) is missing in the AliExpress display and present in the OEM f(x)tec display. I tried swapping the screen using the OEM one. Did the exact same thing as it always did. Touchscreen worked for a few seconds, plugged the phone in, then it stopped working. Decided to open up the phone to see if it might be the ribbon cable plug on the motherboard. I've got a decent tool kit and some experience working on phones (and a ton working on desktops and laptops). Noticed in a few places that things didn't look quite right. A screw was missing from the main body, underneath the back part of the screen, but its hole had been covered up by a little sticker anyway. There were weird wrinkles in the stick-on EFI shield tape atop the big chips and battery as if someone had attempted to peel it up and stopped. At least one of the body screws seemed suspiciously loose. Got deep enough to unplug the whole series of ribbon cables on the mainboard and firmly reseat them. After reassembly, no change. So whatever the hell's going on has to be something wrong with the mainboard or ribbon cable, or something someone else did when poking around inside this phone, and I don't feel like diagnosing this thing by replacing parts further. I'm just going to sell it for parts. I already bought another one in black that fully works so that'll be my new phone and I have a couple spare screens in case I ever break any. Either the Ebay seller I bought it from lied to me about it being straight out of the Kickstarter box, or this one was a hack job from the factory. Either seems possible. 1 Quote Link to post Share on other sites
senseamidmadness 9 Posted November 11 Author Share Posted November 11 F(x)tec has been surprisingly communicative over email. They also sent me a replacement display cable after the display swap didn't fix it, and I'm going to try installing that. 2 2 Quote Link to post Share on other sites
