Slion 1,201 Posted July 2, 2020 Share Posted July 2, 2020 (edited) I recently swapped the screen assembly of two broken Pro1s to get one working. To access the screws at the back of the display you need to remove those stickers covering them. Now I was wondering if replacing those stickers with slightly thicker rubber pads would help with rattling when the phone is closed. Then I found those guys that could produce something usable for that application: https://www.rhnuttall.co.uk/pads/rubber-pads/ Looks like they could produce 0.8mm thick neoprene rubber pads for this application. Just have to give them the proper diameter. Some one mentioned 5mm diameter stickers were fitting just fine. We could measure that again to be sure. I reckon I'll ask them for a quote. Edited July 2, 2020 by Slion 2 1 Quote Link to post Share on other sites
Slion 1,201 Posted July 2, 2020 Author Share Posted July 2, 2020 (edited) I just sent them an enquiry. Edited July 2, 2020 by Slion 2 Quote Link to post Share on other sites
EskeRahn 5,471 Posted July 2, 2020 Share Posted July 2, 2020 I added some 0.5mm pads at various places, so 0.8mm inserted over the screws sounds right. I like the idea. 👍 1 1 Quote Link to post Share on other sites
TeZtdevice 303 Posted July 2, 2020 Share Posted July 2, 2020 I ordered these stickers (not arrived yet):https://www.ebay.de/itm/0-0044-Stk-448-Stk-Klebepunkte-Markierungspunkte-5-mm-Aufkleber-Inventur/283625708872?ssPageName=STRK%3AMEBIDX%3AIT&var=584926818486&_trksid=p2057872.m2749.l2649 1 Quote Link to post Share on other sites
Jordi 72 Posted July 2, 2020 Share Posted July 2, 2020 What about self bounding rubber tape (0.8 mm. thickness) or clarinet mouthpiece pads, cut with scissor or this tool, for ex.? 2 Quote Link to post Share on other sites
Slion 1,201 Posted July 2, 2020 Author Share Posted July 2, 2020 (edited) 1 hour ago, Jordi said: What about self bounding rubber tape (0.8 mm. thickness) or clarinet mouthpiece pads, cut with scissor or this tool, for ex.? Actually I just ordered similar hole punchers tools. Then just have to find the proper material. Delivery in September, I guess not 🙂 Edited July 2, 2020 by Slion 2 Quote Link to post Share on other sites
EskeRahn 5,471 Posted July 2, 2020 Share Posted July 2, 2020 8 hours ago, TeZtdevice said: I ordered these stickers (not arrived yet):https://www.ebay.de/itm/0-0044-Stk-448-Stk-Klebepunkte-Markierungspunkte-5-mm-Aufkleber-Inventur/283625708872?ssPageName=STRK%3AMEBIDX%3AIT&var=584926818486&_trksid=p2057872.m2749.l2649 These goes worldwide. €12 including shipping. Though 3600 is way beyond what I in even my most pessismistic repair scenario will need - will report back if they are of decent quality and not too glossy.... 1 Quote Link to post Share on other sites
Hook 3,043 Posted July 2, 2020 Share Posted July 2, 2020 25 minutes ago, EskeRahn said: These goes worldwide. €12 including shipping. Though 3600 is way beyond what I in even my most pessismistic repair scenario will need - will report back if they are of decent quality and not too glossy.... Here's the US link for these. I failed to turn this up back when I ordered my 1600, lol. https://www.ebay.com/itm/3600-Glue-Dots-5mm-Circles-Black-dot-Self-Adhesive-Sticker-Inventory-Foil/273534542426?epid=27025325402&hash=item3fafede25a:g:gLEAAOSwn0pdOD18 Quote Link to post Share on other sites

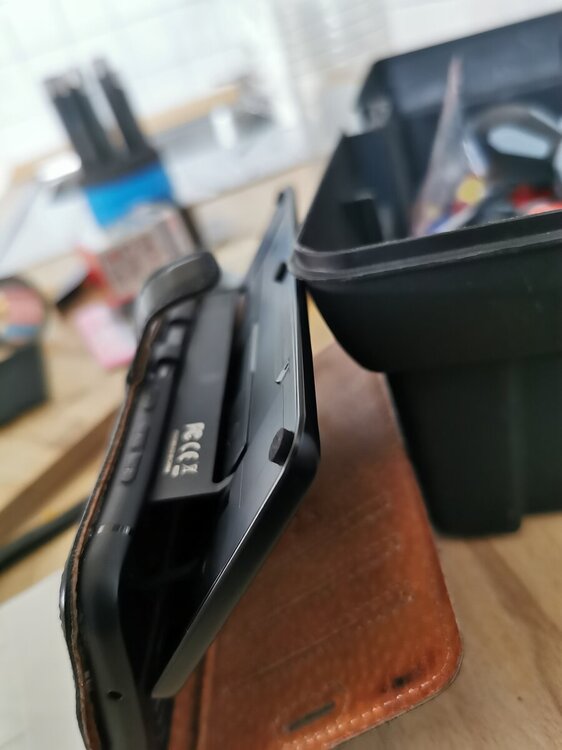

Slion 1,201 Posted July 3, 2020 Author Share Posted July 3, 2020 (edited) 2mm neoprene. I'll try with those 3 for a while they should flatten over time, they are really squishy. Just setting up those three is fixing any rattling when closed. Edited July 3, 2020 by Slion 3 Quote Link to post Share on other sites

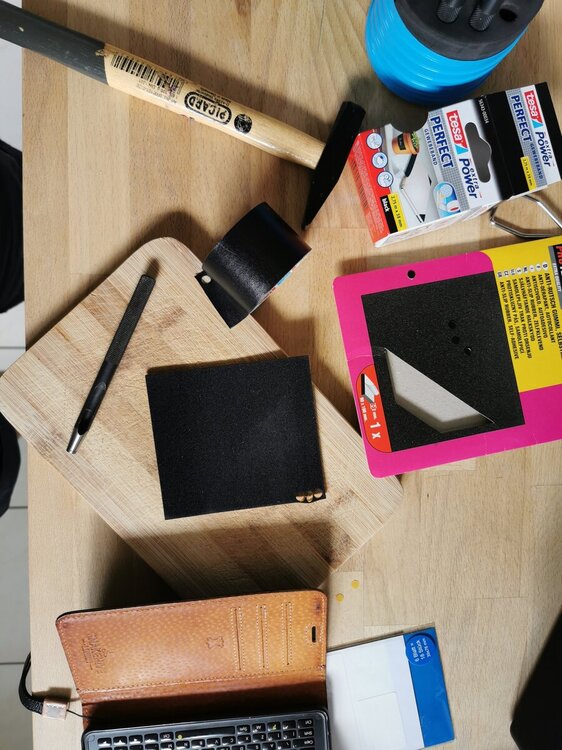

Slion 1,201 Posted July 3, 2020 Author Share Posted July 3, 2020 5mm hole punch does the job just fine then you can try any material you want. 6 Quote Link to post Share on other sites
Slion 1,201 Posted July 5, 2020 Author Share Posted July 5, 2020 I did some trials with various materials and thickness. If you just want to cover the screws any black tape will do. If you want to get ride of the rattling while closed you probably need 2mm squishy foam on every corner of the screen. Nothing else would do for me. I tried 1mm hard rubber in seven emplacements, including the four corners and the two screws in the middle and that does not help at all with the rattling. I've settled with 2mm rubber foam on every corner and 1mm hard rubber for those two screws in the middle. 1 1 Quote Link to post Share on other sites
EskeRahn 5,471 Posted July 19, 2020 Share Posted July 19, 2020 On 7/2/2020 at 5:48 PM, EskeRahn said: These goes worldwide. €12 including shipping. Though 3600 is way beyond what I in even my most pessimistic repair scenario will need - will report back if they are of decent quality and not too glossy.... They are rather glossy, so not something I can recommend 😕 Quote Link to post Share on other sites
DieBruine 397 Posted July 20, 2020 Share Posted July 20, 2020 Use Sugru. It's a hassle to remove, but not impossible. You can shape it in any form and thickness you like. It does not shine and can be used for dampening... Quote Link to post Share on other sites
MickH 212 Posted July 22, 2020 Share Posted July 22, 2020 If you have a nice sharp craft knife and a steady hand 2mm single sided draught excluder tape will also do the job. Much like Slion's suggestion really. I've actually used the same stuff for making the rubber door seals on large scale model cars. 1 Quote Link to post Share on other sites
OKSun 103 Posted August 5, 2020 Share Posted August 5, 2020 (edited) On 7/3/2020 at 3:07 PM, Slion said: 2mm neoprene. I'll try with those 3 for a while they should flatten over time, they are really squishy. Just setting up those three is fixing any rattling when closed. Where did you purchase them? in which material did you punch the holes? Edited August 5, 2020 by OKSun 1 Quote Link to post Share on other sites
EskeRahn 5,471 Posted August 5, 2020 Share Posted August 5, 2020 1 hour ago, OKSun said: Where did you purchase them? in which material did you punch the holes? You can easily find mats of various thickness on e.g. ebay. Search for "adhesive neoprene" (or rubber) and you will find it offered as mats or bands in various thickness. 3 Quote Link to post Share on other sites

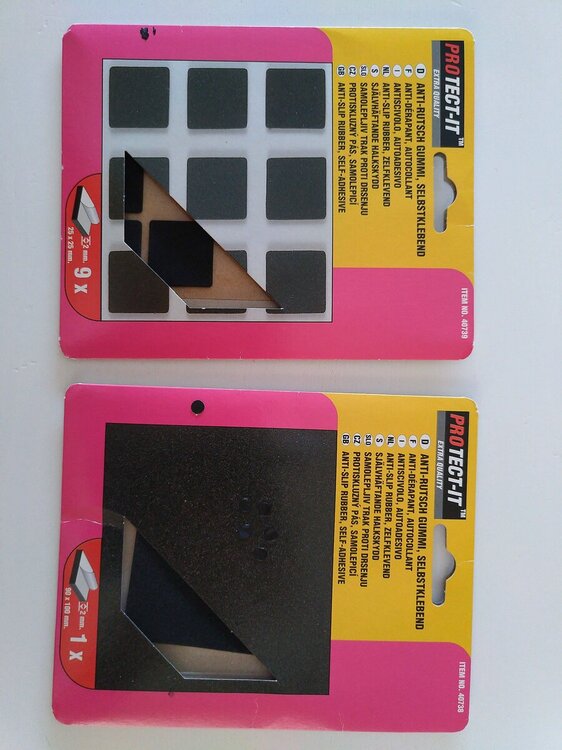

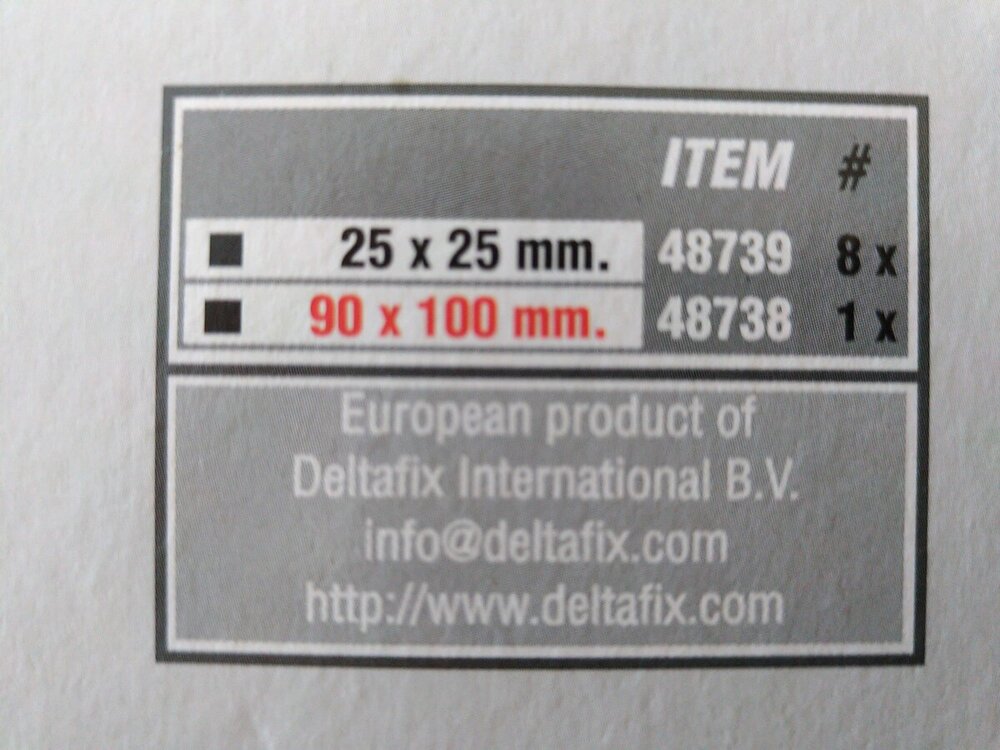

Slion 1,201 Posted August 5, 2020 Author Share Posted August 5, 2020 3 hours ago, OKSun said: Where did you purchase them? in which material did you punch the holes? From an old batch I bought like 10 years ago in a hardware store in Germany. 1 2 Quote Link to post Share on other sites

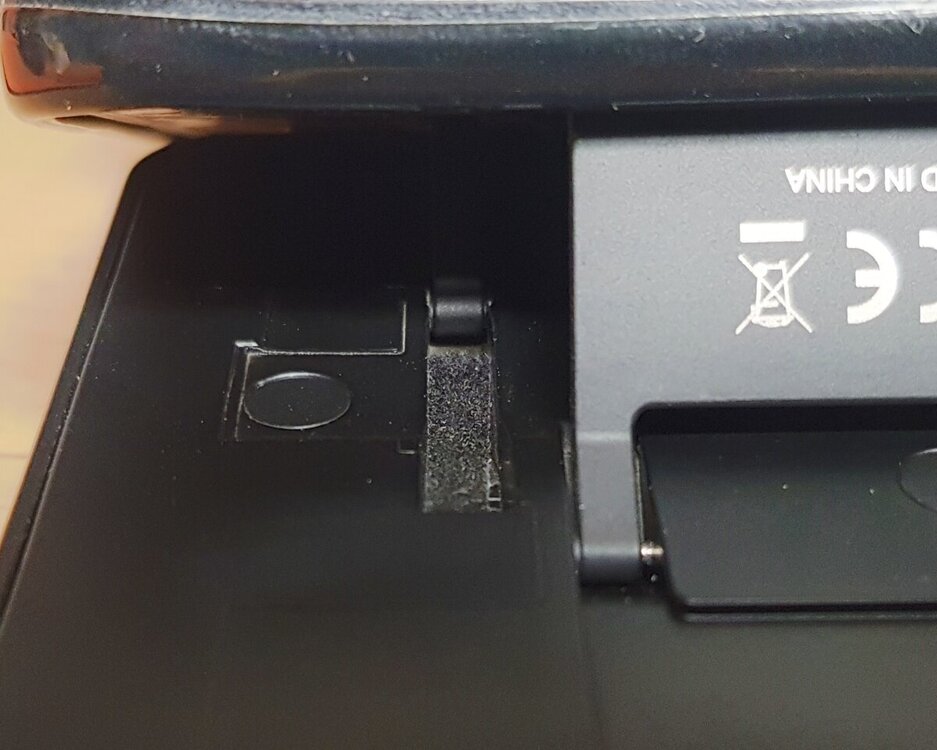

OKSun 103 Posted August 6, 2020 Share Posted August 6, 2020 (edited) I have been reading the following post: I understand that the tape should be pasted there?? EskeRahn had suggested another location at the begining (see picture). Edited August 6, 2020 by OKSun 2 Quote Link to post Share on other sites
